Partnering ABB MV Switchgears

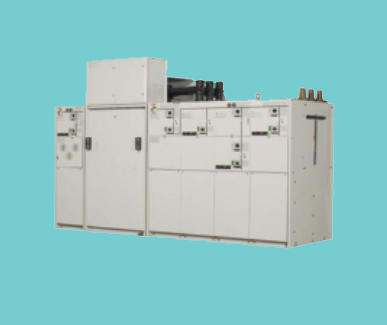

12 kV - 24kV - 36kV Outdoor / Indoor Compact Substation :

12 kV - 24kV CSS with HT as RMU, with Oil / Dry Trafo & LT Switchgear 36KV CSS with HT as RMU/HT Drawout AIS Panel, With Oil / Dry Trafo & LT Switchgear


12V-36kV Indoor Air Insulated / Gas Insulated Switchboard :

12kV, 25kA/31.5kA for 3 Sec Air Insulated Switchgear

36kV, 25kA/31.5kA for 3 Sec Air Insulated Switchgear

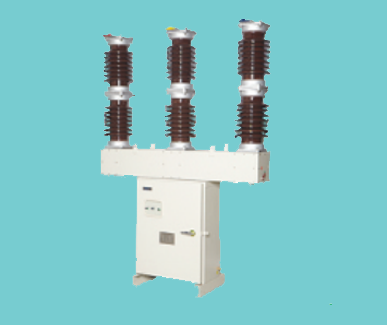

12kV - 36kV Outdoor Porcelain Clad Circuit Breaker :

1250A/1600A, 25kA/31.5kA for 3 sec MSEDCL Approved


12kV - 24kV - 36kV Outdoor / Indoor Compact Switchgears :

12kV - 24kV CSS with HT as RMU, with upto 2 MVA Oil / Dry Trafo & LT Switchgear

36kV CSS with HT as RMU/HT Drawout AIS Panel, With upto 2MVA Oil / Dry Trafo & LT Switchgear

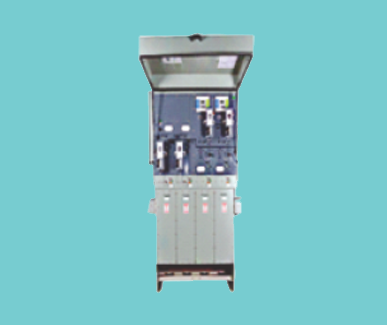

12kV - 24kV - 36kV Outdoor or Indoor SF6 Gas Insulated Ring Main Unit :

12kV - 24kV : 20kA / 3Sec, 630A

36kV - 20kA/3Sec, 25kA/1Sec, 630A

Available as On-Load Isolator, VCB & Fuse Module

Front Cable or Side & Rear Cable Termination Available
