12kV Fixed VCB Panels

12kV indoor/Outdoor fixed type VCB (FVCB) panel with Vacuum Interrupters, epoxy support Insulators, double switch blades and contact with arc quenching chambers, with spring charging mechanism for
three-pole disconnection & Earth switch with mechanical interlock facility.

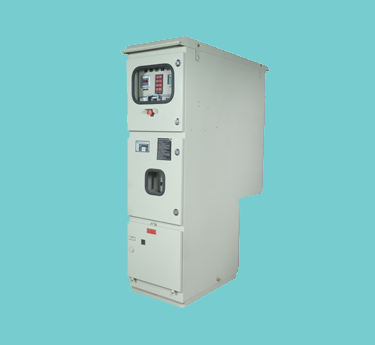

12kV Fixed VCB Panel



USPs:



  • Comes with complete Transformer protection i.e WT, OT, Bucholz etc.
  • Compact design
  • Suitable for Indoor/Outdoor application
  • Trip free spring operated mechanism
  • Suitable interlocks for operator safety
  • Easy motorized mechanism
  • Mechanism is suitable for remote operation
  • Self-powered numerical Relay, Multifunction Meter with CT & PT can be provided
  • Completely door closed operation for operator safety
  • Reliable & robust mechanism
  • Live line indicators



Technical Specification






Rated Voltage 12kV
Rated Current 400/630A
Rated Short time current 25kA/1 sec
Rated Peak withstand Capacity 62.5 kAp
Type of Brake Air Break
Rated Insulation Level 28kV/75kVp
Rated Frequency 50 Hz.
No. Of Poles 3
No. Breaks / Pole Single
Overall Dimensions 600mm(W), 1350mm (D), 2000mm (H)
Approx Weight 450 Kgs.


Applications and Our Presence :

Utilities and Power Plants
  • Power stations, wind farms
  • Transformer stations
  • Switching stations
  • Main and auxiliary switchboards.
Industry
  • Pulp and Paper
  • Textile
  • Chemical
  • Food
  • Automotive
  • Petrochemical
  • Mining
Transports
  • Airports
  • Ports
  • Railways
  • Underground transport
  • Light Rail Transport
Other
  • Shopping Centres
  • Supermarkets
  • Hospitals
  • Infrastructures and civil works
