12kV Load Break Switches(LBS)

12kV indoor/Outdoor Load Break Switch with epoxy support Insulators, double switch blades and contact with arc quenching chambers, with spring charging mechanism for three-pole disconnection, HT HRC fuse trip & Earth switch with mechanical interlock facility.

The LBFS manufactured by us are suitable for both Indoor & Outdoor applications, for switching of Transformers, Condensers, Cables etc. Our LBFS is approved by MSPWD & MSEDCL to be used in various Industries, Commercial complexes, residential apartments etc

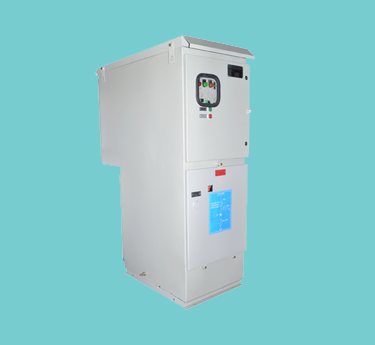

Indoor 12kV load break switch with interlock



Safety & Interlocks:



  • Mechanical interlocks are provided between main switch & earth switch in such a way that the earth switch can be closed only when the main switch (LBS) is OFF & vice versa.
  • Access to the HT HRC fuses is not possible when the main switch (LBS) is in ON condition.
  • All the live parts are on Rear side hence more safety to the operator.





Technical Specification






Rated Voltage 12kV
Rated Current 400/630A
Rated Short time current 25kA/1 sec
Rated Peak withstand Capacity 62.5 kAp
Type of Brake Air Break
Rated Insulation Level 28kV/75kVp
Rated Frequency 50 Hz.
No. Of Poles 3
No. Breaks / Pole Single
Overall Dimensions 600 x 1100 x 1750 (WxDxH)
Approx Weight 300 Kgs.


Applications and Our Presence :

Utilities and Power Plants
  • Power stations, wind farms
  • Transformer stations
  • Switching stations
  • Main and auxiliary switchboards.
Industry
  • Pulp and Paper
  • Textile
  • Chemical
  • Food
  • Automotive
  • Petrochemical
  • Mining
Transports
  • Airports
  • Ports
  • Railways
  • Underground transport
  • Light Rail Transport
Other
  • Shopping Centres
  • Supermarkets
  • Hospitals
  • Infrastructures and civil works
